Transform data with map in data flow graphs

Important

This page includes instructions for managing Azure IoT Operations components using Kubernetes deployment manifests, which is in PREVIEW. This feature is provided with several limitations, and shouldn't be used for production workloads.

See the Supplemental Terms of Use for Microsoft Azure Previews for legal terms that apply to Azure features that are in beta, preview, or otherwise not yet released into general availability.

A map transform takes each incoming message and produces an output message based on your rules. You can rename fields, reorganize them into new structures, compute derived values, or remove unwanted fields. Wildcard rules let you copy all fields at once.

For an overview of data flow graphs and how transforms compose in a pipeline, see Data flow graphs overview.

Prerequisites

An Azure IoT Operations instance deployed on an Arc-enabled Kubernetes cluster. For more information, see Deploy Azure IoT Operations.
A default registry endpoint named default that points to mcr.microsoft.com is automatically created during deployment. The built-in transforms use this endpoint.

How map rules work

Each map rule has four parts:

Property	Required	Description
`inputs`	Yes	List of field paths to read from the incoming message.
`output`	Yes	Field path where the result is written in the output message.
`expression`	No	Formula applied to the input values. If omitted, the first input value is copied directly.
`description`	No	Human-readable label for the rule, included in error messages.

Inputs are assigned positional variables based on their order: the first input is $1, the second is $2, and so on. Use these variables in the expression.

Rename a field

To rename BirthDate to DateOfBirth, map one input to a different output path. No expression is needed. The value copies as-is.

In the map transform configuration, add a rule:

Setting	Value
Input	`BirthDate`
Output	`DateOfBirth`

{
  inputs: [
    'BirthDate'
  ]
  output: 'DateOfBirth'
}

- inputs:
    - BirthDate
  output: DateOfBirth

Restructure fields

Use dot notation in the output path to move fields into a nested structure.

Add two rules:

Input	Output
`Name`	`Employee.Name`
`BirthDate`	`Employee.DateOfBirth`

{
  inputs: [ 'Name' ]
  output: 'Employee.Name'
}
{
  inputs: [ 'BirthDate' ]
  output: 'Employee.DateOfBirth'
}

- inputs:
    - Name
  output: Employee.Name

- inputs:
    - BirthDate
  output: Employee.DateOfBirth

Given this input:

{
  "Name": "Grace Owens",
  "BirthDate": "19840202",
  "Position": "Analyst"
}

These two rules produce:

{
  "Employee": {
    "Name": "Grace Owens",
    "DateOfBirth": "19840202"
  }
}

Only fields listed in a rule's output appear in the result. The Position field isn't included because no rule maps it.

Combine multiple inputs

When you list multiple inputs, their positional variables let you merge them in an expression.

Add a rule:

Setting	Value
Inputs	`Position`, `Office`
Output	`Employment.Position`
Expression	`$1 + ", " + $2`

{
  inputs: [ 'Position', 'Office' ]
  output: 'Employment.Position'
  expression: '$1 + ", " + $2'
}

- inputs:
    - Position     # $1
    - Office       # $2
  output: Employment.Position
  expression: "$1 + \", \" + $2"

Given Position: "Analyst" and Office: "Kent, WA", the output is "Analyst, Kent, WA".

Transform values with expressions

Use the expression field to apply built-in functions or arithmetic.

Add a compute rule. For example, to convert Celsius to Fahrenheit:

Setting	Value
Input	`temperature`
Output	`temperature_f`
Expression	`cToF($1)`

To scale a sensor reading to a 0-100 range, use the expression scale($1, 0, 4095, 0, 100).

{
  inputs: [ 'temperature' ]
  output: 'temperature_f'
  expression: 'cToF($1)'
}

To scale a sensor reading:

{
  inputs: [ 'raw_pressure' ]
  output: 'pressure_pct'
  expression: 'scale($1, 0, 4095, 0, 100)'
}

- inputs:
    - temperature     # $1
  output: temperature_f
  expression: "cToF($1)"

To scale a sensor reading:

- inputs:
    - raw_pressure     # $1
  output: pressure_pct
  expression: "scale($1, 0, 4095, 0, 100)"

For the complete list of operators, functions, and advanced features, see Expressions reference.

Copy all fields with wildcards

When the output should closely match the input with only a few changes, use a wildcard rule to copy every field at once. Then add rules to override, add, or remove specific fields.

Add a passthrough rule that copies all fields. Set the input to * and the output to *.

{
  inputs: [ '*' ]
  output: '*'
}

- inputs:
    - '*'
  output: '*'

Wildcard rule requirements

A wildcard rule must be the first rule in your map configuration.
Only one wildcard rule is allowed per map transform.
The asterisk matches one or more path segments and must represent a complete segment. Patterns like partial* aren't supported.

Prefix wildcards

You can scope the wildcard to a specific prefix. To flatten all fields from ColorProperties to the root level:

Add a rule with input ColorProperties.* and output *.

{
  inputs: [ 'ColorProperties.*' ]
  output: '*'
}

- inputs:
    - 'ColorProperties.*'
  output: '*'

Given:

{
  "ColorProperties": {
    "Hue": "blue",
    "Saturation": "90%",
    "Brightness": "50%"
  }
}

The output is:

{
  "Hue": "blue",
  "Saturation": "90%",
  "Brightness": "50%"
}

Remove fields from the output

Set the output to an empty string to exclude specific fields. This approach is typically used after a wildcard rule: copy everything, then remove what you don't need.

Add a passthrough rule to copy all fields.
Add a remove rule and select the fields to exclude (for example, password and internal_id).

{
  inputs: [ '*' ]
  output: '*'
}
{
  inputs: [ 'password', 'internal_id' ]
  output: ''
}

- inputs:
    - '*'
  output: '*'

- inputs:
    - password
    - internal_id
  output: ""

No expression is allowed on a removal rule.

Override wildcards for specific fields

When a wildcard rule and a specific rule both match the same field, the more specific rule takes precedence.

Add a passthrough rule to copy all fields.
Add a compute rule for temperature with the expression cToF($1).

The map transform applies the specific rule to temperature and copies all other fields as-is.

{
  inputs: [ '*' ]
  output: '*'
}
{
  inputs: [ 'temperature' ]
  output: 'temperature'
  expression: 'cToF($1)'
}

- inputs:
    - '*'
  output: '*'

- inputs:
    - temperature     # $1
  output: temperature
  expression: "cToF($1)"

Use metadata fields

You can read from and write to message metadata like MQTT topics and user properties. See Metadata fields in the expressions reference.

Add a rule with input region and output $metadata.user_property.region to write a field value to an MQTT user property.

{
  inputs: [ '*' ]
  output: '*'
}
{
  inputs: [ 'region' ]
  output: '$metadata.user_property.region'
}

- inputs:
    - '*'
  output: '*'

- inputs:
    - region
  output: $metadata.user_property.region

For a complete example of dynamic topic routing, see Route messages to different topics.

Use last known value and defaults

When sensor data arrives intermittently, you can fill in missing fields with the last known value or a static default. See Last known value and Default values in the expressions reference.

Add a rule for the temperature field and enable Last known value. Set a default value of 0 as a fallback.

{
  inputs: [ 'temperature ? $last ?? 0' ]
  output: 'temperature'
}

- inputs:
    - temperature ? $last ?? 0     # $1
  output: temperature

This rule uses the current value when present, falls back to the last known value, and uses 0 if neither is available.

Enrich with external data

You can augment messages with data from an external state store by configuring datasets. For example, look up a device's metadata by its ID and include it in the output. For details, see Enrich with external data.

Data flow graph exclusive features

Data flow graphs support several features that aren't available in data flow builtInTransformation mappings.

Default values for missing fields

Use the ?? <default> syntax on an input to provide a static fallback when a field is missing. This is simpler than writing an if expression to check for empty values.

In the map transform configuration, set the input to include the ?? syntax followed by the default value. For example, enter temperature ?? 0 as the input field to use 0 when the temperature field is missing.

{
  inputs: [ 'temperature ?? 0' ]
  output: 'temperature'
}

- inputs:
    - temperature ?? 0
  output: temperature

For details on supported default types and combining defaults with last known values, see Default values in the expressions reference.

Regex functions

Data flow graphs support regular expression matching and replacement:

str::regex_matches(string, pattern): Returns true if the string matches the regex pattern.
str::regex_replace(string, pattern, replacement): Replaces all regex matches with the replacement string.

These functions are useful in filter expressions or for cleaning and transforming string data. For the full list of string functions, see String functions in the expressions reference.

Full configuration example

Here's a complete map configuration that copies all fields, removes sensitive data, restructures a field, and computes a derived value:

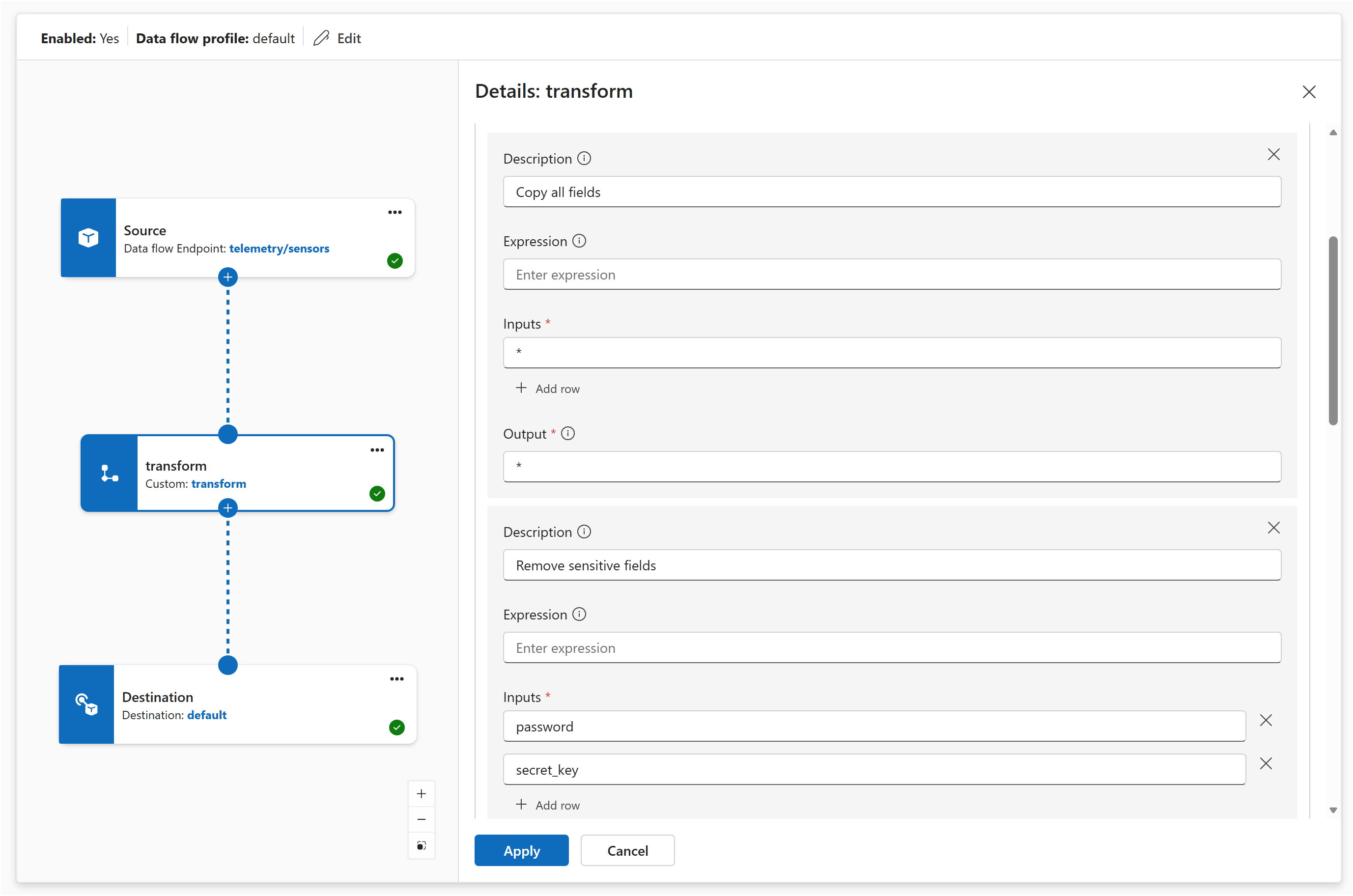

Screenshot of the operations experience map transform configuration panel showing multiple rules for wildcard, remove, restructure, compute, and merge.

In the Operations experience, create a data flow graph and add a map transform. In the map configuration panel, add rules to:

Copy all fields with a wildcard passthrough.
Remove sensitive fields by setting the output to empty for password and secret_key.
Restructure the BirthDate field to Employee.DateOfBirth.
Compute a Fahrenheit conversion using the formula cToF($1) on the temperature field.
Merge the Position and Office fields with the formula $1 + ", " + $2.

resource dataflowGraph 'Microsoft.IoTOperations/instances/dataflowProfiles/dataflowGraphs@2025-10-01' = {
  name: 'temperature-map-example'
  parent: dataflowProfile
  properties: {
    profileRef: dataflowProfileName
    mode: 'Enabled'
    nodes: [
      {
        nodeType: 'Source'
        name: 'sensors'
        sourceSettings: {
          endpointRef: 'default'
          dataSources: [
            'telemetry/sensors'
          ]
        }
      }
      {
        nodeType: 'Graph'
        name: 'transform'
        graphSettings: {
          registryEndpointRef: 'default'
          artifact: 'azureiotoperations/graph-dataflow-map:1.0.0'
          configuration: [
            {
              key: 'rules'
              value: '{"map":[{"inputs":["*"],"output":"*","description":"Copy all fields"},{"inputs":["password","secret_key"],"output":"","description":"Remove sensitive fields"},{"inputs":["BirthDate"],"output":"Employee.DateOfBirth","description":"Restructure birth date"},{"inputs":["temperature"],"output":"temperature_f","expression":"cToF($1)","description":"Convert Celsius to Fahrenheit"},{"inputs":["Position","Office"],"output":"Employment.Position","expression":"$1 + \\", \\" + $2","description":"Merge position and office"}]}'
            }
          ]
        }
      }
      {
        nodeType: 'Destination'
        name: 'output'
        destinationSettings: {
          endpointRef: 'default'
          dataDestination: 'telemetry/processed'
        }
      }
    ]
    nodeConnections: [
      {
        from: { name: 'sensors' }
        to: { name: 'transform' }
      }
      {
        from: { name: 'transform' }
        to: { name: 'output' }
      }
    ]
  }
}

The rules configuration is a JSON string placed as the value for the rules key in a DataflowGraph transform node's configuration section:

{
  "map": [
    {
      "inputs": ["*"],
      "output": "*",
      "description": "Copy all fields"
    },
    {
      "inputs": ["password", "secret_key"],
      "output": "",
      "description": "Remove sensitive fields"
    },
    {
      "inputs": ["BirthDate"],
      "output": "Employee.DateOfBirth",
      "description": "Restructure birth date"
    },
    {
      "inputs": ["temperature"],
      "output": "temperature_f",
      "expression": "cToF($1)",
      "description": "Convert Celsius to Fahrenheit"
    },
    {
      "inputs": ["Position", "Office"],
      "output": "Employment.Position",
      "expression": "$1 + \", \" + $2",
      "description": "Merge position and office"
    }
  ]
}

For the full DataflowGraph resource structure, see Data flow graphs overview.
