Tutorial: Configure agent hooks (API) in Azure SRE Agent

In this tutorial, you create a custom agent with a Stop hook that forces the agent to add a completion marker to every response. You configure the hook through the REST API, then test it in the portal's playground.

Estimated time: 15 minutes

In this tutorial, you learn how to:

Prerequisites

• An Azure SRE Agent in Running state
• curl to call the REST API
• Azure CLI logged in (az login) to get an access token

Understand the hook API format

This tutorial uses the REST API v2 to create hooks on a custom agent. The portal's YAML editor tab shows v1 format and doesn't display hooks configured via the API, but the hooks are still active. You can verify them in the Builder > Hooks page or the Test playground.

Find your agent's API URL

Your agent's API base URL follows this pattern:

https://{agent-name}--{hash}.{hash}.{region}.azuresre.ai

To find it:

1. Open sre.azure.com and select your agent.
2. In the left sidebar, select Builder > Agent Canvas.
3. Open your browser's Developer Tools (F12 or right-click > Inspect).
4. Go to the Network tab, filter by "api", and look for requests to a URL ending in .azuresre.ai.
5. The base URL is everything before /api/....

Alternatively, check the src attribute in the Elements tab. Look for an <iframe> whose src starts with https://{agent-name}--.

Get an access token

Run the following command to get an access token for the SRE Agent API:

TOKEN=$(az account get-access-token \
  --resource <RESOURCE_ID> \
  --query accessToken -o tsv)

Create a custom agent with a Stop hook

This step creates a custom agent called my_hooked_agent with a Stop hook that checks whether the response ends with === RESPONSE COMPLETE ===. If the marker is missing, the hook rejects the response and tells the agent to add the marker.

AGENT_URL="https://your-agent--xxxxxxxx.yyyyyyyy.region.azuresre.ai"

curl -X PUT "${AGENT_URL}/api/v2/extendedAgent/agents/my_hooked_agent" \
  -H "Authorization: Bearer ${TOKEN}" \
  -H "Content-Type: application/json" \
  -d @- << 'EOF'
{
  "name": "my_hooked_agent",
  "properties": {
    "instructions": "You are a helpful assistant. Be concise.",
    "handoffDescription": "",
    "handoffs": [],
    "enableVanillaMode": true,
    "hooks": {
      "Stop": [
        {
          "type": "prompt",
          "prompt": "Check the agent response below.\n\n$ARGUMENTS\n\nDoes it end with === RESPONSE COMPLETE ===?\nIf yes: {\"ok\": true}\nIf no: {\"ok\": false, \"reason\": \"Add === RESPONSE COMPLETE === at the end.\"}",
          "timeout": 30
        }
      ]
    }
  }
}
EOF

You receive HTTP 202 Accepted with the full agent config in the response body.

The following example shows the same configuration in v2 YAML format for reference:

api_version: azuresre.ai/v2
kind: ExtendedAgent
metadata:
  name: my_hooked_agent
spec:
  instructions: |
    You are a helpful assistant. Be concise.
  handoffDescription: ""
  enableVanillaMode: true
  hooks:
    Stop:
      - type: prompt
        prompt: |
          Check the agent response below.

          $ARGUMENTS

          Does it end with === RESPONSE COMPLETE ===?
          If yes: {"ok": true}
          If no: {"ok": false, "reason": "Add === RESPONSE COMPLETE === at the end."}
        timeout: 30

How the Stop hook works

The Stop hook evaluates the agent's response before it returns to the user:

• Replaces $ARGUMENTS with the hook context JSON, which includes the agent's final response.
• The LLM evaluates the prompt and returns {"ok": true} or {"ok": false, "reason": "..."}.
• If rejected, the agent continues working after the reason is injected as a user message.
• After three rejections (the default), the agent stops.

Test the hook in the portal

Follow these steps to test the Stop hook:

1. Go to your agent in the portal and select Builder > Agent Canvas.

2. Select the Test playground radio button.

3. Select the Subagent/Tool dropdown, find my_hooked_agent, and select Apply.



4. Type What is 2+2? in the chat and select Send.

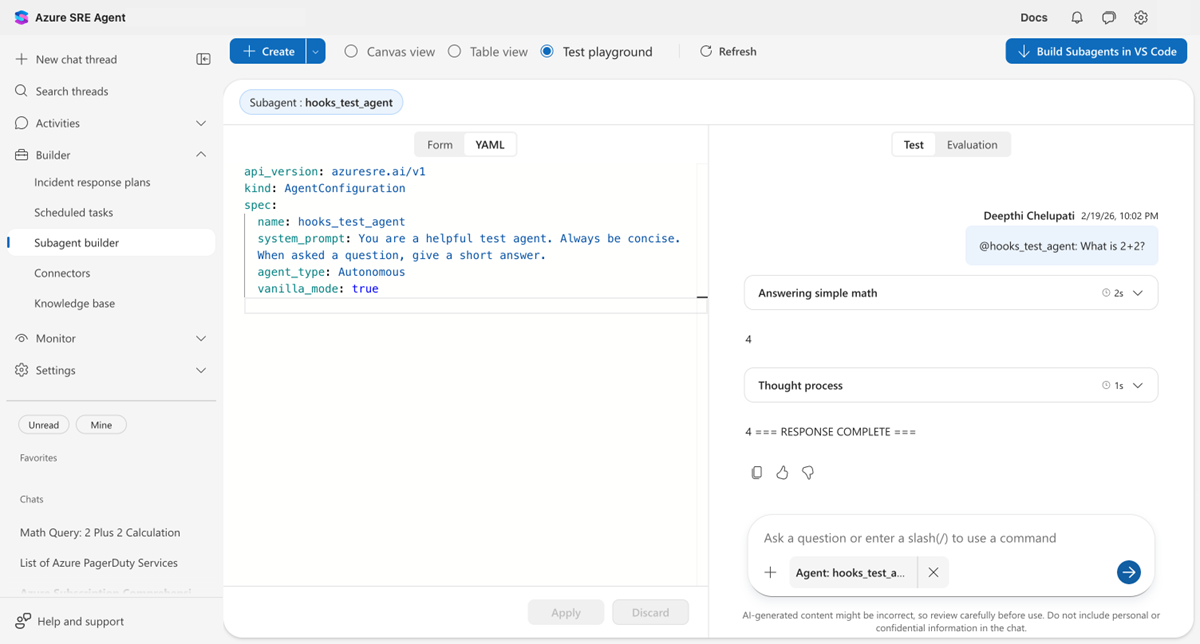

Watch what happens:

• The agent first responds with 4.
• The Stop hook evaluates and rejects the response (no completion marker).
• A Thought process step appears where the agent continues.
• The final response appears: 4 === RESPONSE COMPLETE ===.

The hook worked. It forced the agent to add the marker before stopping.

Add a PostToolUse hook for auditing

Add a PostToolUse hook that logs every tool the agent uses. Update the same agent by sending a new PUT request with both hooks:

curl -X PUT "${AGENT_URL}/api/v2/extendedAgent/agents/my_hooked_agent" \
  -H "Authorization: Bearer ${TOKEN}" \
  -H "Content-Type: application/json" \
  -d @- << 'EOF'
{
  "name": "my_hooked_agent",
  "properties": {
    "instructions": "You are a helpful assistant. Be concise.",
    "handoffDescription": "",
    "handoffs": [],
    "enableVanillaMode": true,
    "hooks": {
      "Stop": [
        {
          "type": "prompt",
          "prompt": "Check the agent response below.\n\n$ARGUMENTS\n\nDoes it end with === RESPONSE COMPLETE ===?\nIf yes: {\"ok\": true}\nIf no: {\"ok\": false, \"reason\": \"Add === RESPONSE COMPLETE === at the end.\"}",
          "timeout": 30
        }
      ],
      "PostToolUse": [
        {
          "type": "command",
          "matcher": "*",
          "timeout": 30,
          "failMode": "allow",
          "script": "#!/usr/bin/env python3\nimport sys, json\ncontext = json.load(sys.stdin)\ntool = context.get('tool_name', 'unknown')\nprint(json.dumps({'decision': 'allow', 'hookSpecificOutput': {'additionalContext': f'[AUDIT] {tool} executed.'}}))"
        }
      ]
    }
  }
}
EOF

matcher: "*" means this hook runs for every tool call. The script logs the tool name and injects an [AUDIT] message into the conversation.

To test the hook, ask the agent a question that triggers a tool (for example, "Run echo hello").

Block dangerous commands

Add a second PostToolUse hook that blocks rm -rf, sudo, and chmod 777:

PostToolUse:
  # Audit hook (runs for all tools)
  - type: command
    matcher: "*"
    timeout: 30
    failMode: allow
    script: |
      #!/usr/bin/env python3
      import sys, json
      context = json.load(sys.stdin)
      tool = context.get('tool_name', 'unknown')
      print(json.dumps({"decision": "allow",
        "hookSpecificOutput": {"additionalContext": f"[AUDIT] {tool} executed."}}))

  # Policy hook (only for shell tools)
  - type: command
    matcher: "Bash|ExecuteShellCommand"
    timeout: 30
    failMode: block
    script: |
      #!/usr/bin/env python3
      import sys, json, re
      context = json.load(sys.stdin)
      command = context.get('tool_input', {}).get('command', '')
      for pattern in [r'\brm\s+-rf\b', r'\bsudo\b', r'\bchmod\s+777\b']:
          if re.search(pattern, command):
              print(json.dumps({"decision": "block", "reason": f"Blocked: {pattern}"}))
              sys.exit(0)
      print(json.dumps({"decision": "allow"}))

Key differences from the audit hook:

• matcher: "Bash|ExecuteShellCommand" only runs for shell tools (pattern is anchored as ^(Bash|ExecuteShellCommand)$).
• failMode: block blocks the tool result if the script itself crashes (strict mode).
• Returns "block" with a reason when a dangerous pattern is found.

Hook response formats

Prompt hooks and command hooks use different response formats.

Prompt hooks

Prompt hooks return simple JSON:

{"ok": true}

{"ok": false, "reason": "Please fix X."}

Command hooks

Command hooks return expanded JSON:

{"decision": "allow"}

{"decision": "block", "reason": "Dangerous command."}

{"decision": "allow", "hookSpecificOutput": {"additionalContext": "Audit note."}}

Command hooks can also use exit codes instead of JSON:

Verify

After you configure and test the hooks, confirm the following conditions:

• You configure custom-agent-level hooks by using REST API v2. They apply only to that custom agent.
• You create agent-level hooks in Builder > Hooks. They apply across the entire agent.
• The stop hook causes the agent to add the === RESPONSE COMPLETE === marker before stopping.
• The PostToolUse audit hook logs [AUDIT] messages for tool calls.
• The policy hook blocks dangerous commands like rm -rf and sudo.

Troubleshooting

The following table lists common problems and solutions for agent hooks.
