This article describes the development process and best practices for implementing business events.

What is a business event, and what isn't a business event?

This question comes up every time that you start to think about use cases where business events can help. Is the creation of a vendor a business event? Is confirmation of a purchase order a business event? Is it a business event if you capture the event at the table level? Or should you capture business events only at the business logic level in a business process? These questions aren't just valid, but they're also a key article of discussion when a solution is planned and architected for integration. The following guidelines can help with this thought process and decision making.

Intent

You must clearly understand the intent behind capturing a business event. In other words, you need to know the reason for capturing the business event and how the recipient uses it.

If your intent is to capture a business event so that you can take a business action outside finance and operations apps in response to a business event that occurs in the finance and operations apps, you have a good use case for business events. The business action that you take in response to the business event can be to notify users about the business event and/or to call into another business application to take a business action, such as creation of a sales order. It's important that you look at the business action generically and not base the need for a business event on the type of business action that you take.

If your intent is to transfer data to a recipient and, in effect, realize a data export scenario, you don't have a good use case for business events. In fact, the use of business events for data transfer scenarios is a misuse of the business events framework. Such scenarios must continue to use data export mechanisms that are already available in data management.

Fidelity

When the intent is clear and there's a legitimate need for a business event, evaluate the approach to capture the business event. This section summarizes the approach that you should evaluate.

Regardless of the approach, the fidelity of business events is significant. It helps guarantee that the following aspects are taken care of. Therefore, it must influence the design choice for implementing the business event. However, the design choice that you make to implement a business event must not influence the concept of business events. In other words, don't use the chosen design as a decision-making tool to determine whether an event is a business event. Use the intent to make those decisions.

Durable business events – Don't send false business events to the recipient. If you send a purchase order confirmation business event, the recipient expects and must trust that the purchase order was really confirmed. The design choice must help guarantee this transactional nature. Therefore, don't make a design choice that violates the recipient's expectations.
Targeted – Design business events to optimize the consumption story for the recipient. Make it as easy as possible for the recipient to consume business events. Therefore, business events must be as specific as possible and must be targeted to specific use cases. They mustn't be generic, so that the consumer has to determine what the business event is for by trying to understand the payload. The design choice must allow for preservation of targeted business events.
Noiseless – The design should include very little effort to filter out noise. To make business events very specific, avoid writing filtering logic to filter out conditions that don't match the expected business event. The chosen approach must help guarantee that the business event is implemented in code at a sufficiently specific point so that no filtering of noise is required. Any attempt to filter noise by adding logic can affect performance and might also become complicated in specific use cases.

The following table compares capture at the business and table levels.

Capture at the business logic level	Capture at the table level
Capture at this level helps guarantee durability because it occurs in the transaction.	Capture at this level helps guarantee durability because it occurs in the transaction.
Capture at this level allows for targeted business events.	Because you capture events at a lower level, it's difficult to provide targeted business events.
It's easy to remain noiseless.	It's difficult to remain noiseless unless you make additional effort to implement sound logic that filters out noise.
Capture at this level provides additional context for the business process, and can significantly improve the durability and quality of the payload.	Because you capture events at a lower level, business process context is probably lost.

Note

In general, if you implement business events at the table level, you might face other challenges, in addition to the challenges that are described in the preceding table. For example, if the business logic runs through a stored procedure that updates data in the underlying table, the business event might not be generated. This problem happens because you implemented the business event in the table insert method in X++. You might encounter additional challenges in specific use cases. Therefore, don't implement business events at the table level.

Implement a business event

The process for implementing a business event and sending it is fairly straightforward.

Build the contract.
Build the event.
Add code to send the event.

Implement two classes:

Business event – Extend the BusinessEventsBase class. This class supports constructing the business event, building the payload, and sending the business event.
Business event contract – Extend the BusinessEventsContract class. This class defines the payload of the business event and allows for population of the contract at runtime.

BusinessEventsBase extension

Naming convention

Name business events using the pattern <noun or noun phrase><past tense action>BusinessEvent. Make sure the <noun or noun phrase> part of the name follows existing definitions for application area prefixes.

Examples

VendorInvoicePostedBusinessEvent
CollectionLetterSentBusinessEvent

Implementation

Implementing an extension of the BusinessEventsBase class is straightforward. Extend the BusinessEventsBase class, and implement a static constructor method, a private new method, methods to maintain internal state, and the buildContract method.

Implement a static newFrom<my_buffer> method. The <my_buffer> part of the method name is typically the table buffer that initializes the business event contract.

static public SalesInvoicePostedBusinessEvent
newFromCustInvoiceJour(CustInvoiceJour _custInvoiceJour)
{
    SalesInvoicePostedBusinessEvent businessEvent = new
    SalesInvoicePostedBusinessEvent();
    businessEvent.parmCustInvoiceJour(_custInvoiceJour);
    return businessEvent;
}

Extend the BusinessEventsBase class.
```
[BusinessEvents(classStr(SalesInvoicePostedBusinessEventContract),
'AccountsReceivable:SalesOrderInvoicePostedBusinessEventName','AccountsReceivable:SalesOrderInvoicePostedBusinessEventDescription',ModuleAxapta::SalesOrder)]
public class SalesInvoicePostedBusinessEvent extends BusinessEventsBase
```
Note the BusinessEvents attribute. This attribute provides the business events framework with information about the business event's contract, name, and description. It also provides the module that the business event is part of. Define labels for the name and description arguments. However, reference these labels without the at symbol (@) to avoid storing localized data.
Implement a private new method. Call this method only from the static constructor method.
```
private void new()
{
}
```

Implement private parm methods to maintain internal state.

private CustInvoiceJour parmCustInvoiceJour(CustInvoiceJour _custInvoiceJour = custInvoiceJour)
{
    custInvoiceJour = _custInvoiceJour;
    return custInvoiceJour;
}

Implement the buildContract method. You need an EventContract stub for this step.

[Wrappable(false), Replaceable(false)]
public BusinessEventsContract buildContract()
{
    return
    SalesInvoicePostedBusinessEventContract::newFromCustInvoiceJour(custInvoiceJour);
}

Call the buildContract method only when a business event is enabled for a company.

Here's the complete implementation of the "Sales order invoice posted" business event.

/// <summary>
/// Sales order invoice posted business event.
/// </summary>
[BusinessEvents(classStr(SalesInvoicePostedBusinessEventContract),
'AccountsReceivable:SalesOrderInvoicePostedBusinessEventName',
'AccountsReceivable:SalesOrderInvoicePostedBusinessEventDescription',
ModuleAxapta::SalesOrder)]
public class SalesInvoicePostedBusinessEvent extends BusinessEventsBase
{
    private CustInvoiceJour custInvoiceJour;
    private CustInvoiceJour parmCustInvoiceJour(CustInvoiceJour _custInvoiceJour =
    custInvoiceJour)
    {
        custInvoiceJour = _custInvoiceJour;
        return custInvoiceJour;
    }
    /// <summary\>
    /// Creates a SalesInvoicePostedBusinessEvent from a CustInvoiceJour record.
    /// <summary>
    /// param name = "_custInvoiceJour"> CustInvoiceJour record <param>
    /// <returns>A SalesInvoicePostedBusinessEvent </returns>
    static public SalesInvoicePostedBusinessEvent
    newFromCustInvoiceJour(CustInvoiceJour _custInvoiceJour)
    {
        SalesInvoicePostedBusinessEvent businessEvent = new
        SalesInvoicePostedBusinessEvent();
        businessEvent.parmCustInvoiceJour(_custInvoiceJour);
        return businessEvent;
    }
    private void new()
    {
    }
    [Wrappable(false), Replaceable(false)]
    public BusinessEventsContract buildContract()
    {
        return SalesInvoicePostedBusinessEventContract::newFromCustInvoiceJour(custInvoiceJour);
    }
}

BusinessEventsContract extension

A business event contract class extends the BusinessEventsContract class. It defines and populates the payload of the business event. Although there is some variation across business events, the basic structure of the business event contract is consistent.

The process of implementing a business event contract involves extending the BusinessEventContract class, defining internal state, implementing an initialization method, implementing a static constructor method, and implementing parm methods to access the contract state.

Extend the BusinessEventContract class.

[DataContract]
public final class SalesInvoicePostedBusinessEventContract extends
BusinessEventsContract

The class must have the DataContract attribute.

Add private variables to hold the contract state.

private CustInvoiceAccount invoiceAccount;
private CustInvoiceId invoiceId;
private SalesIdBase salesId;
private TransDate invoiceDate;
private DueDate invoiceDueDate;
private AmountMST invoiceAmount;
private TaxAmount invoiceTaxAmount;
private LegalEntityDataAreaId legalEntity;

Implement a protected initialization method.

protected void initialize(CustInvoiceJour _custInvoiceJour)
{
    invoiceAccount = _custInvoiceJour.InvoiceAccount;
    invoiceId = _custInvoiceJour.InvoiceId;
    salesId = _custInvoiceJour.SalesId;
    invoiceDate = _custInvoiceJour.InvoiceDate;
    invoiceDueDate = _custInvoiceJour.DueDate;
    invoiceAmount = _custInvoiceJour.InvoiceAmountMST;
    invoiceTaxAmount = _custInvoiceJour.SumTaxMST;
    legalEntity = _custInvoiceJour.DataAreaId;
}

The initialize method sets the private state of the business event contract class, based on data that the static constructor method provides. It should be protected so that a Chain of Command (CoC) class extension can be used to extend the contract class.

Implement a static constructor method.

public static SalesInvoicePostedBusinessEventContract
newFromCustInvoiceJour(CustInvoiceJour _custInvoiceJour)
{
    var contract = new SalesInvoicePostedBusinessEventContract();
    contract.initialize(_custInvoiceJour);
    return contract;
}

The static constructor method calls the initialize method to initialize the private class state.

Implement parm methods to access the contract state.
```
[DataMember('InvoiceAccount'), BusinessEventsDataMember("@AccountsReceivable:InvoiceAccount")]
public CustInvoiceAccount parmInvoiceAccount(CustInvoiceAccount _invoiceAccount = invoiceAccount)
{
    invoiceAccount = _invoiceAccount;
    return invoiceAccount;
}
```
The parm methods should have the DataMember('<name>') and BusinessEventsDataMember('<description>') attributes. The name that you provide on the DataMember attribute (for example, 'InvoiceAccount') is visible to data contract consumers. The description that you provide in the BusinessEventsDataMember attribute is visible in the Business Events catalog user interface (UI) and used to describe this contract's data members.

Note

RecId values shouldn't be part of a business event's payload. Use the alternate key (AK) instead.
Enumeration (enum) values must be converted to their symbol value before they can be published. Use the enum2Symbol method to convert an enum's value to the symbol string. Here's an example:
```
status = enum2Symbol(enumNum(CustVendDisputeStatus), _custDispute.Status);
```

In some cases, populating the data contract's internal state requires that you implement additional retrieval methods. Implement these retrieval methods as private methods, and call them from the initialize method.

Here's the complete implementation of the "Sales order invoice posted" business event contract.

/// <summary>
/// The data contract for a SalesInvoicePostedBusinessEvent
/// </summary>
[DataContract]
public final class SalesInvoicePostedBusinessEventContract extends
BusinessEventsContract
{
    private CustInvoiceAccount invoiceAccount;
    private CustInvoiceId invoiceId;
    private SalesIdBase salesId;
    private TransDate invoiceDate;
    private DueDate invoiceDueDate;
    private AmountMST invoiceAmount;
    private TaxAmount invoiceTaxAmount;
    private LegalEntityDataAreaId legalEntity;
    /// <summary>
    /// Creates a SalesInvoicePostedBusinessEventContract from a CustInvoiceJour record.
    /// </summary>
    /// <param name = "_custInvoiceJour"> CustInvoiceJour record</param>
    /// <returns>A SalesInvoicePostedBusinessEventContract </returns>
    public static SalesInvoicePostedBusinessEventContract
    newFromCustInvoiceJour(CustInvoiceJour _custInvoiceJour)
    {
        var contract = new SalesInvoicePostedBusinessEventContract();
        contract.initialize(_custInvoiceJour);
        return contract;
    }
    protected void initialize(CustInvoiceJour _custInvoiceJour)
    {
        invoiceAccount = _custInvoiceJour.InvoiceAccount;
        invoiceId = _custInvoiceJour.InvoiceId;
        salesId = _custInvoiceJour.SalesId;
        invoiceDate = _custInvoiceJour.InvoiceDate;
        invoiceDueDate = _custInvoiceJour.DueDate;
        invoiceAmount = _custInvoiceJour.InvoiceAmountMST;
        invoiceTaxAmount = _custInvoiceJour.SumTaxMST;
        legalEntity = _custInvoiceJour.DataAreaId;
    }
    private void new()
    {
    }
    [DataMember('InvoiceAccount'), BusinessEventsDataMember("@AccountsReceivable:InvoiceAccount")]
    public CustInvoiceAccount parmInvoiceAccount(CustInvoiceAccount _invoiceAccount
    = invoiceAccount)
    {
        invoiceAccount = _invoiceAccount;
        return invoiceAccount;
    }
    [DataMember('InvoiceId'), BusinessEventsDataMember("@AccountsReceivable:BusinessEventInvoiceId")]
    public CustInvoiceId parmInvoiceId(CustInvoiceId _invoiceId = invoiceId)
    {
    invoiceId = _invoiceId;
    return invoiceId;
    }
    [DataMember('SalesOrderId'), BusinessEventsDataMember("@AccountsReceivable:SalesOrderId")]
    public SalesIdBase parmSaleOrderId(SalesIdBase _salesId = salesId)
    {
        salesId = _salesId;
        return salesId;
    }
    [DataMember('InvoiceDate'), BusinessEventsDataMember("@AccountsReceivable:BusinessEventInvoiceDate")]
    public TransDate parmInvoiceDate(TransDate _invoiceDate = invoiceDate)
    {
        invoiceDate = _invoiceDate;
        return invoiceDate;
    }
    [DataMember('InvoiceDueDate'), BusinessEventsDataMember("@AccountsReceivable:InvoiceDueDate")]
    public DueDate parmInvoiceDueDate(DueDate _invoiceDueDate = invoiceDueDate)
    {
        invoiceDueDate = _invoiceDueDate;
        return invoiceDueDate;
    }
    [DataMember('InvoiceAmountInAccountingCurrency'), BusinessEventsDataMember("@AccountsReceivable:InvoiceAmountInAccountingCurrency")]
    public AmountMST parmInvoiceAmount(AmountMST _invoiceAmount = invoiceAmount)
    {
        invoiceAmount = _invoiceAmount;
        return invoiceAmount;
    }
    [DataMember('InvoiceTaxAmount'), BusinessEventsDataMember("@AccountsReceivable:InvoiceTaxAmount")]
    public TaxAmount parmInvoiceTaxAmount(TaxAmount _invoiceTaxAmount =
    invoiceTaxAmount)
    {
        invoiceTaxAmount = _invoiceTaxAmount;
        return invoiceTaxAmount;
    }
    [DataMember('LegalEntity'), BusinessEventsDataMember("@AccountsReceivable:LegalEntity")]
    public LegalEntityDataAreaId parmLegalEntity(LegalEntityDataAreaId _legalEntity
    = legalEntity)
    {
        legalEntity = _legalEntity;
        return legalEntity;
    }
}

Sending a business event

Modify your application code to send the business event at the appropriate point. Often, you can use a common point in a framework. Documents that extend SourceDocument provide a common point for creating and sending a business event. For more information, see the Source document framework support section later in this article.

Other frameworks also provide common points for sending business events. For example, the CustVendVoucher class hierarchy in the Application Object Tree (AOT) has a post method that sends business events related to posting customer or vendor vouchers. Overrides of the base class implementation provide specialization of the logic for sending business events. For an example, see CustVoucher.createBusinessEvent or VendVoucher.createBusinessEvent in the AOT.

The business event sending links to the commit of the underlying transaction. If the underlying transaction is aborted, the business event isn't sent. Therefore, send the business event at the point where the payload information is available.

The business events framework determines whether a business event is published to a consumer. As a general rule, always send a business event, regardless of whether the business event is enabled. If significant additional logic is required, or if the logic for sending a business event has a performance impact, check whether a specific business event is enabled before running business logic that is associated with sending business events. This check is done through the BusinessEventsConfigurationReader::isBusinessEventEnabled method.

if (BusinessEventsConfigurationReader::isBusinessEventEnabled(classStr(CollectionStatusUpdatedBusinessEvent)))
{
    while select dispute
    where dispute.Status == CustVendDisputeStatus::PromiseToPay
    && dispute.FollowUpDate _currentDate
    exists join custTrans
    where custTrans.RecId == dispute.CustTrans
    && !custTrans.Closed
    exists join _tmpCustAging
    where _tmpCustAging.AccountNum == custTrans.AccountNum
    {
        CollectionStatusUpdatedBusinessEvent::newFromCustDispute(dispute).send();
    }
}

Source document framework support

The source document framework supports sending business events automatically as part of the transition from an in-process state to a completed state for the document. To take advantage of this capability, documents that extend the source document framework must implement an extension of the SourceDocumentStateInProcess.getBusinessEvent method to create and return the correct BusinessEventsBase extension type.

Extending a business event payload

You might want to publish additional information as part of the payload of a business event. To send this extra information, extend the business event's standard payload.

Example scenario

This example shows how to extend the CustFreeTextInvoicePostedBusinessEventContract class so that it includes a customer classification. This customer classification is an industry-based custom classification.

Step 1: Create an extension class for the business event contract

Create an extension class of the contract class you're extending to add information that must be included in the payload.

[ExtensionOf(classStr(CustFreeTextInvoicePostedBusinessEventContract))]
internal final class CustFreeTextInvoicePostedBusinessEventContractMyModel_Extension
{
    // contract extension state
    private str customerClassification;
}

Step 2: Extend the initialize method through Chain of Command

Create a Chain of Command extension of the initialize method that initializes the value of the private contract.

protected void initialize(CustInvoiceJour _custInvoiceJour)
{
    next initialize(_custInvoiceJour);

    customerClassification = 'StandardCustomer';
}

Step 3: Add parm methods for additional fields that you want to add to the payload

// contract extension data members
[DataMember('MyModelCustomerClassification')]
public str parmMyModelCustomerClassification(str _customerClassification = customerClassification)
{
    customerClassification = _customerClassification;
    return customerClassification;
}

Here's the complete implementation of the extended business contract.

Follow the standard naming guidelines for extensions when creating your class to avoid collisions with your newly added fields.

[ExtensionOf(classStr(CustFreeTextInvoicePostedBusinessEventContract))]
internal final class CustFreeTextInvoicePostedBusinessEventContractMyModel_Extension
{
    // contract extension private state
    private str customerClassification;
    protected void initialize(CustInvoiceJour _custInvoiceJour)
    {
        next initialize(_custInvoiceJour);

        customerClassification = 'StandardCustomer';
    }

    // contract extension data members
    [DataMember('MyModelCustomerClassification')]
    public str parmMyModelCustomerClassification(str _customerClassification = customerClassification)
    {
        customerClassification = _customerClassification;
        return customerClassification;
    }
}

Extending filters so that they have custom fields (if the middleware supports this extension)

Some middleware systems allow for filtering of the events. For example, Microsoft Azure Service Bus has a property bag that you can populate with key-value pairs. Use these key-value pairs to filter events when reading from the Service Bus Queue or Topic. Additionally, Azure Event Grid has filterable message properties such as Subject, Event Type, and ID. To support these various properties for the different systems, the business events framework uses a concept that is named payload context. You can extend this concept so that it includes custom fields that the different eventing systems can use for filtering.

Payload context

The business events framework supports the payload context concept. Payload context provides a way to decorate messages that the framework sends with context about the payload. In some scenarios, additional context might be required when messages are sent to endpoints. Therefore, the framework has hookpoints where the context can be overwritten and the adapters can be customized.

Step 1: Add a custom payload context

Extend a custom payload context from the BusinessEventsCommitLogPayloadContext class.

class CustomCommitLogPayloadContext extends BusinessEventsCommitLogPayloadContext
{
    private utcdatetime eventTime;
    public utcdatetime parmEventTime(utcdatetime _eventTime = eventTime)
    {
        eventTime = _eventTime;
        return eventTime;
    }
}

Step 2: Construct the custom payload context

Write a Chain of Command (CoC) extension for the BusinessEventsSender.buildPayloadContext method, so that it can construct the new payload context type.

[ExtensionOf(classStr(BusinessEventsSender))]
public final class CustomPayloadContextBusinessEventsSender_Extension
{
    protected BusinessEventsCommitLogPayloadContext
    buildPayloadContext(BusinessEventsCommitLogEntry _commitLogEntry)
    {
        BusinessEventsCommitLogPayloadContext payloadContext = next
        buildPayloadContext(_commitLogEntry);
        CustomCommitLogPayloadContext customPayloadContext = new
        CustomCommitLogPayloadContext();
        customPayloadContext.initFromBusinessEventsCommitLogEntry(_commitLogEntry);
        customPayloadContext.parmEventTime(_commitLogEntry.parmEventTime());
        return customPayloadContext;
    }
}

Step 3: Consume the custom payload context from an adapter

Write adapters that consume payload context in such a way that they expose CoC methods that allow for the consumption of new payload contexts. The following example shows what this step looks like for the Service Bus adapter. This adapter has a generic property bag that Service Bus consumers can filter on.

The BusinessEventsServiceBusAdapter class has the CoC method that is named addProperties.

using Microsoft.ServiceBus.Messaging;

[ExtensionOf(classStr(BusinessEventsServiceBusAdapter))]
public final class CustomBusinessEventsServiceBusAdapter_Extension
{
    protected void addProperties(BrokeredMessage _message, BusinessEventsEndpointPayloadContext _context)
    {
        next addProperties(_message, _context);
        if (_context is CustomCommitLogPayloadContext)
        {
            CustomCommitLogPayloadContext customPayloadContext = _context as CustomCommitLogPayloadContext;
            var propertyBag = _message.Properties;
            propertyBag.Add('EventId', customPayloadContext.parmEventId());
            propertyBag.Add('BusinessEventId', customPayloadContext.parmBusinessEventId());
            // Convert the enum to string to be able to serialize the property.
            propertyBag.Add('BusinessEventCategory', enum2Symbol(enumNum(ModuleAxapta),
            customPayloadContext.parmBusinessEventCategory()));
            propertyBag.Add('LegalEntity', customPayloadContext.parmLegalEntity());
            propertyBag.Add('EventTime', customPayloadContext.parmEventTime());
        }
    }
}

The BusinessEventsEventGridAdapter class has the CoC method that is named setContextProperties. The following example shows what this step looks like for the Event Grid Adapter. The eventGridMessage has a Subject that can be filtered on.

using Microsoft.Azure.EventGrid.Models;

[ExtensionOf(classStr(BusinessEventsEventGridAdapter))]
public final class CustomBusinessEventsEventGridAdapter_Extension
{
    protected void setContextProperties(EventGridEvent _eventGridEvent, BusinessEventsEndpointPayloadContext _context)
    {
        next setContextProperties(_eventGridEvent, _context);
        if (_context is CustomCommitLogPayloadContext)
        {
            CustomCommitLogPayloadContext customPayloadContext = _context as CustomCommitLogPayloadContext;

            _eventGridEvent.Subject = _eventGridEvent.Subject + customPayloadContext.parmLegalEntity();
        }
    }
}

Adding a custom endpoint type

The business events framework supports the addition of new endpoint types to the out-of-box endpoint types. This section provides an example that shows how to add new custom endpoint types.

Step 1: Add a new endpoint type

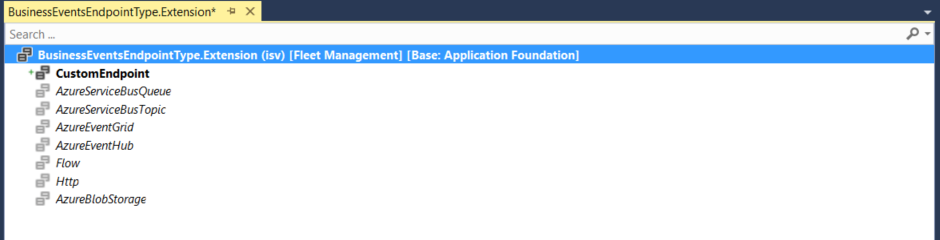

Each endpoint type is represented by the BusinessEventsEndpointType enum. Add the new endpoint type to this enum, as shown in the following illustration.

Screenshot of Enum extension.

Step 2: Add a new endpoint table to the hierarchy

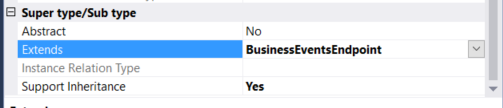

All endpoint data is stored in a hierarchy table. The root of this hierarchy is the BusinessEventsEndpoint table. Create a new endpoint table that extends this root table by setting the Support Inheritance property to Yes and the Extends property to "BusinessEventsEndpoint" (or any other endpoint in the BusinessEventsEndpoint hierarchy).

Screenshot of Table extends BusinessEventsEndpoint.

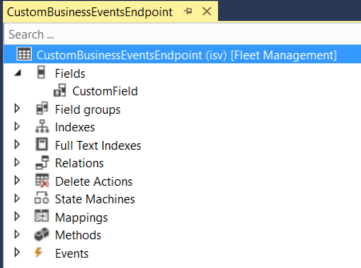

Define the custom fields in the new table. These fields are required to initialize and communicate with the endpoint in code. To help avoid conflict, qualify field names to the specific endpoint where they belong. For example, two endpoints can have the concept of a URL field. To distinguish the fields, use names that are specific to the custom endpoint. For example, name the field for the custom endpoint CustomURL.

Screenshot of New table with custom fields.

Step 3: Add a new endpoint adapter class that implements the IBusinessEventsEndpoint interface

The new endpoint adapter class must implement the IBusinessEventsEndpoint interface. Decorate the class with the BusinessEventsEndpointAttribute attribute.

[BusinessEventsEndpoint(BusinessEventsEndpointType::CustomEndpoint)]
public class CustomEndpointAdapter implements IBusinessEventsEndpoint
{

Implement the initialize method to check the type of the BusinessEventsEndpoint buffer that the method receives. If the buffer is the correct type, initialize it, as shown in the following example.

if (!(_endpoint is CustomBusinessEventsEndpoint))
{
    BusinessEventsEndpointManager::logUnknownEndpointRecord(tableStr(CustomBusinessEventsEndpoint),
    _endpoint.RecId);
}
CustomBusinessEventsEndpoint customBusinessEventsEndpoint = _endpoint as CustomBusinessEventsEndpoint;
customField = customBusinessEventsEndpoint.CustomField;
if (!customField)
{
    throw warning(strFmt("\@BusinessEvents:MissingAdapterConstructorParameter",
    classStr(CustomEndpointAdapter), varStr(customField)));
}

Step 4: Extend the EndpointConfiguration form

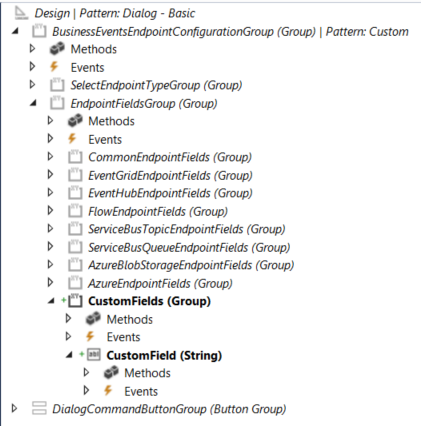

Add a new group control under FormDesign/BusinessEventsEndpointConfigurationGroup/EndpointFieldsGroup/ to hold your custom field input.

Screenshot of New group control for custom field input.

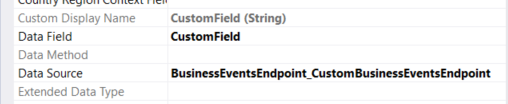

Bind the custom field input to the new table and field that you created in the previous step. Create a class extension to extend the getConcreteType and showOtherFields methods of BusinessEventsEndpointConfiguration form, as shown in the following example.

Screenshot of Class extension for data source.

[ExtensionOf(formStr(BusinessEventsEndpointConfiguration))]
final public class CustomBusinessEventsEndpointConfiguration_Extension
{
    public TableName getConcreteTableType(BusinessEventsEndpointType \_endpointType)
    {
        TableName tableName = next getConcreteTableType(_endpointType);
        if (_endpointType == BusinessEventsEndpointType::CustomEndpoint)
        {
            tableName = tableStr(CustomBusinessEventsEndpoint);
        }
        return tableName;
    }
    public void showOtherFields()
    {
        next showOtherFields();
        BusinessEventsEndpointType selection =
        any2Enum(EndpointTypeSelection.selection());
        if (selection == BusinessEventsEndpointType::CustomEndpoint)
        {
            this.control(this.controlId(formControlStr(BusinessEventsEndpointConfiguration,
            CustomFields))).visible(true);
        }
    }
}

Adding human-readable data fields to the payload

This feature is available in Platform update 30 and later.

The serialization of business events uses FormJsonSerializer to serialize objects in the data contract. FormJsonSerializer can format UtcDataTime values in the ISO 8601 date and time format. This format is human-readable when you view the payload of a business event. For example, a UtcDataTime value can now be formatted as "2007-12-05T14:30Z" instead of "/Date(1196865000000)/". In the "/Date(N)" format, N is the number of milliseconds that have passed since January 1, 1970, UTC+0. The ISO format is more often understood by tools that parse JavaScript Object Notation (JSON).

To get the human-readable format, use the extended data type (EDT) named DateTimeIso8601 as the type of the value in the data contract. Alternatively, use an EDT that is derived from the DateTimeIso8601 EDT.

[DataMember("TestIsoEdtUtcDateTime")]
public DateTimeIso8601 testIsoEdtUtcDateTime(DateTimeIso8601 _value = this._testIsoDateTime)
{
    if (!prmIsDefault(_value))
    {
        this._testIsoDateTime = _value;
    }
    return this._testIsoDateTime;
}

Feedback

Was this page helpful?

Last updated on 2026-01-22

Share via

Business events developer documentation

What is a business event, and what isn't a business event?

Intent

Fidelity

Implement a business event

BusinessEventsBase extension

Naming convention

Implementation

BusinessEventsContract extension

Sending a business event

Source document framework support

Extending a business event payload

Example scenario

Step 1: Create an extension class for the business event contract

Step 2: Extend the initialize method through Chain of Command

Step 3: Add parm methods for additional fields that you want to add to the payload

Extending filters so that they have custom fields (if the middleware supports this extension)

Payload context

Step 1: Add a custom payload context

Step 2: Construct the custom payload context

Step 3: Consume the custom payload context from an adapter

Adding a custom endpoint type

Step 1: Add a new endpoint type

Step 2: Add a new endpoint table to the hierarchy

Step 3: Add a new endpoint adapter class that implements the IBusinessEventsEndpoint interface

Step 4: Extend the EndpointConfiguration form

Adding human-readable data fields to the payload

Feedback

Additional resources
