High-level architecture

This article provides a high-level overview of Azure Databricks architecture, including its enterprise architecture, in combination with Azure.

Databricks objects

A Azure Databricks account is the top-level construct that you use to manage Azure Databricks across your organization. At the account level, you manage:

• Identity and access: Users, groups, service principals, and user provisioning.

• Workspace management: Create, update, and delete workspaces across multiple regions.

• Unity Catalog metastore management: Create and attach metastore to workspaces.

• Usage management: Billing, compliance, and policies.

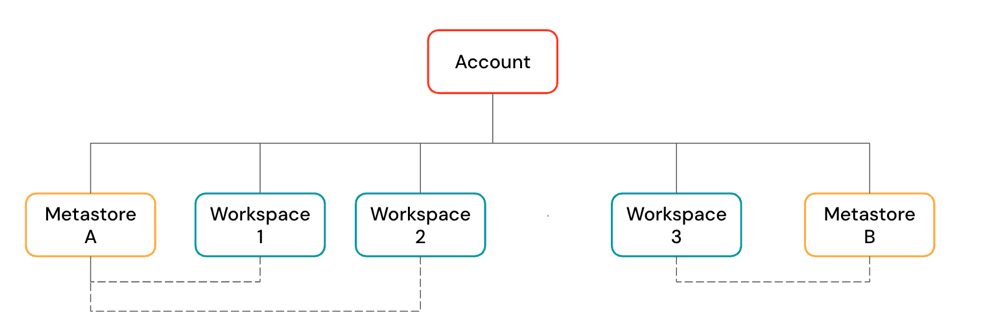

An account can contain multiple workspaces and Unity Catalog metastores.

• Workspaces are the collaboration environment where users run compute workloads such as ingestion, interactive exploration, scheduled jobs, and ML training.

• Unity Catalog metastores are the central governance system for data assets such as tables and ML models. You organize data in a metastore under a three-level namespace:

<catalog-name>.<schema-name>.<object-name>

Metastores are attached to workspaces. You can link a single metastore to multiple Azure Databricks workspaces in the same region, giving each workspace the same data view. Data access controls can be managed across all linked workspaces.

Workspace architecture

Azure Databricks operates out of a control plane and a compute plane.

• The control plane includes the backend services that Azure Databricks manages in your Azure Databricks account. The control plane is located in the Azure Databricks account, not your cloud account. The web application is in the control plane.

• The compute plane is where your data is processed. There are two types of compute planes depending on the compute that you are using.

  • For serverless compute, the serverless compute resources run in a serverless compute plane in your Azure Databricks account.
  • For classic Azure Databricks compute, the compute resources are in your Azure subscription in what is called the classic compute plane. This refers to the network in your Azure subscription and its resources.

  To learn more about classic compute and serverless compute, see Compute.

Classic workspace architecture

Classic Azure Databricks workspaces have an associated storage account known as the workspace storage account. The workspace storage account is in your Azure subscription.

The following diagram describes the general Azure Databricks architecture for classic workspaces.

Serverless workspace architecture

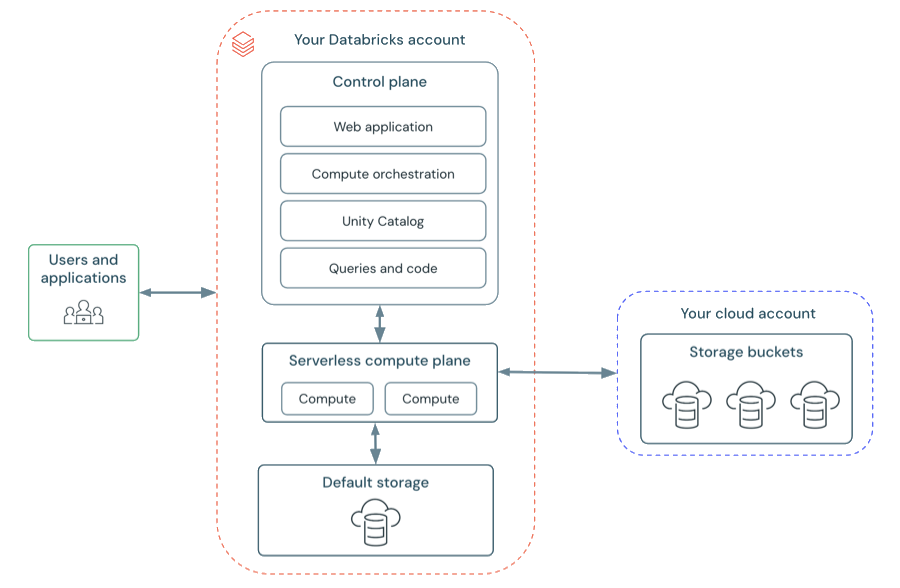

Workspace storage in serverless workspaces is stored in the workspace's default storage. You can also connect to your cloud storage account to access your data. The following diagram describes the general architecture for serverless workspaces.

Serverless compute plane

In the serverless compute plane, Azure Databricks compute resources run in a compute layer within your Azure Databricks account. Azure Databricks creates a serverless compute plane in the same Azure region as your workspace's classic compute plane. You select this region when creating a workspace.

To protect customer data within the serverless compute plane, serverless compute runs within a network boundary for the workspace, with various layers of security to isolate different Azure Databricks customer workspaces and additional network controls between clusters of the same customer.

To learn more about networking in the serverless compute plane, Serverless compute plane networking.

Classic compute plane

In the classic compute plane, Azure Databricks compute resources run in your Azure subscription. New compute resources are created within each workspace's virtual network in the customer's Azure subscription.

A classic compute plane has natural isolation because it runs in each customer's own Azure subscription. To learn more about networking in the classic compute plane, see Classic compute plane networking.

For regional support, see Azure Databricks regions.

Workspace storage

Workspace storage is handled differently depending on your workspace type. For more information about the workspace types, see Create a workspace.

Workspace storage contains two categories of data: workspace file system data and workspace system data. Both are separate from your own data objects (such as Unity Catalog tables and volumes).

Workspace file system data

The workspace file system stores the assets that users create and manage through the Azure Databricks UI. These include:

• Notebooks
• SQL queries and dashboards
• Alerts
• Repos (folders attached to Git repositories)
• Libraries (.whl, .jar)
• Python files, YAML configuration files, and other small files

For more information about workspace files, see What are workspace files?. For a full list of workspace assets, see Introduction to workspace objects.

Workspace system data

Every Azure Databricks workspace also stores system data generated internally by Azure Databricks features. This data is too large to store in memory or databases, or needs to persist beyond the lifetime of a single compute resource. Examples of workspace system data include:

• SQL query results and cached query results
• Job run results
• Notebook revisions
• SQL query plans used for observability
• Cluster logs

For details on how workspace storage is configured for each workspace type, see the sections below.

Serverless workspaces

Serverless workspaces use default storage, which is a fully managed storage location for internal workspace system data and Unity Catalog data assets. Serverless workspaces also support the ability to connect to your cloud storage locations for your own catalogs, tables, and other data assets. See Default storage in Databricks.

Classic workspaces

In classic workspaces, workspace system data is distinct from What is DBFS?. Although both may reside in the same cloud storage account in classic workspaces, they serve different purposes. DBFS root is a user-accessible file system, while workspace system data is used internally by Azure Databricks features.

The workspace storage account contains:

• Workspace system data: Internal data generated by Azure Databricks features
• Unity Catalog workspace catalog: If your workspace was enabled for Unity Catalog automatically, the workspace storage account contains the default workspace catalog. All users in your workspace can create assets in the default schema in this catalog. See Get started with Unity Catalog.
• DBFS (legacy): DBFS root and DBFS mounts are legacy and might be disabled in your workspace. DBFS (Databricks File System) is a distributed file system in Azure Databricks environments accessible under the dbfs:/ namespace. DBFS root and DBFS mounts are both in the dbfs:/ namespace. Storing and accessing data using DBFS root or DBFS mounts is a deprecated pattern and not recommended by Databricks. For more information, see What is DBFS?.

To limit access to your workspace storage account from only authorized resources and networks, see Enable firewall support for your workspace storage account.
