Windows 11 battery icon no longer appearing

Firstly, run Surface Diagnostic Tool Kit

Open Device Manager. In Start Search type Device Manager and hit the Enter key to open.

Expand Batteries

You should see:

Microsoft AC Adapter

Microsoft ACPI Compliant Control Method Battery

If Batteries section is missing → driver corruption

If Surface Battery is missing → embedded controller issue

If both are present → icon service problem

Right-click Microsoft AC Adapter → Uninstall device

Right-click Microsoft Surface Battery → Uninstall device

Restart the Surface

Shut down completely

Hold Power button for 20 seconds

Release

Wait 10 seconds

Turn it back on

If that doesn’t work:

Shut down

Hold Power + Volume Up together for 15 seconds

Release

Wait 10 seconds

Start normally

Go to Settings → Personalization → Taskbar

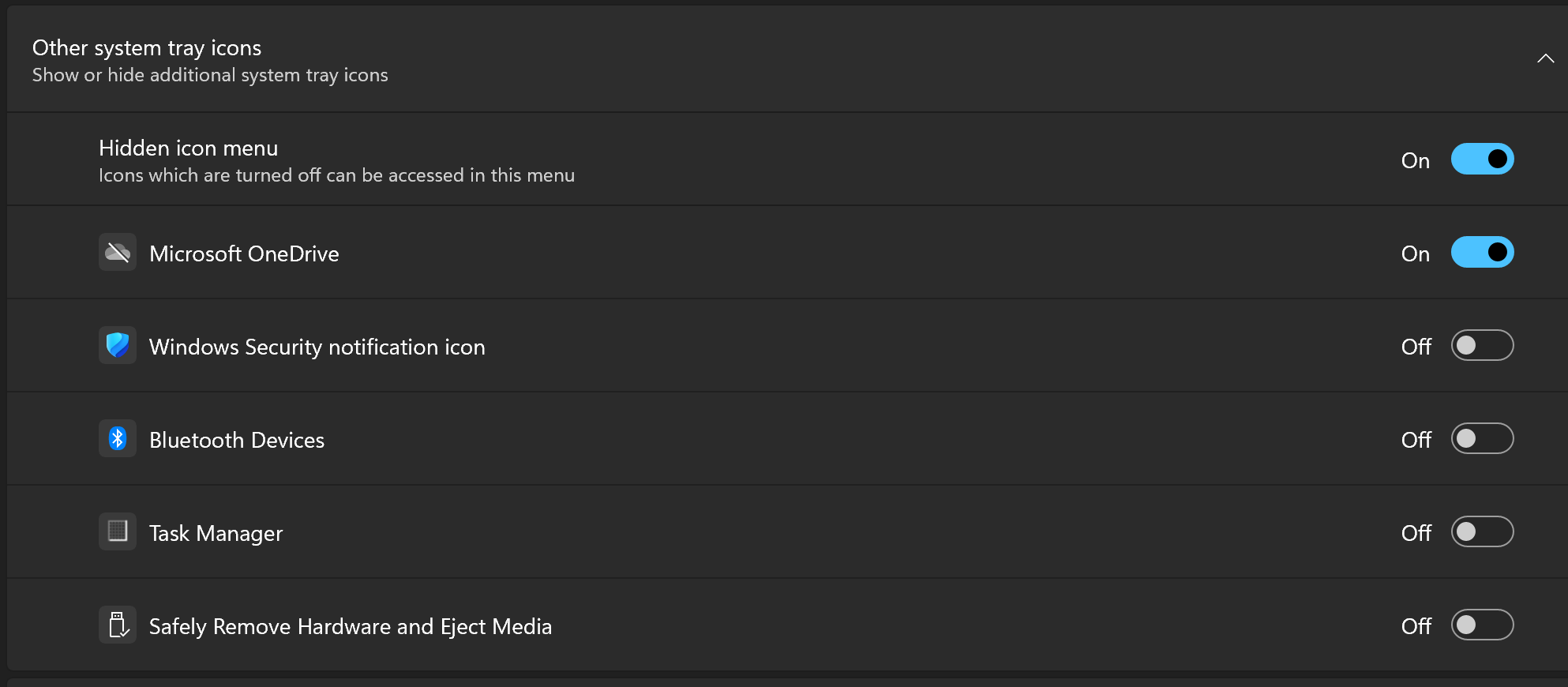

Click Other system tray icons

Make sure Power is ON

Open Command Prompt as Admin and copy-paste:

powercfg /restoredefaultschemes

In Start Search type Gpedit.msc and hit the Enter key to open Group Policy Editor.

Under User Configuration > Administrative Templates > Start Menu and Taskbar > Scroll down to Remove the battery meter > Double click on it > Set the policy to either Not configured or, Disabled. Click Apply/OK. Reboot.

Hi grace,

Thank you for reaching out to Microsoft Q&A forum. I understand how disruptive it is not to have visibility into your battery status, especially when it has been ongoing for a long time.

I can see that Q&A Assist has already shared a few steps and to help further, I’ve added some additional recommendations below:

Step 1: Surface firmware / power reset

This step re‑initializes the Surface battery and power controller at the hardware level (not just Windows).

1. Shut down the Surface completely.
2. Disconnect the charger and all accessories.
3. Press and hold the Power button for about 20 seconds.
4. Release the button, reconnect the charger, and power the device back on.

If the battery icon was missing due to a firmware reporting issue, it may return immediately after this step.

Step 2: Reset battery drivers in Device Manager

If the issue persists:

1. Press Win + X > Device Manager.
2. Expand Batteries.
3. Right‑click Microsoft AC Adapter and Microsoft ACPI‑Compliant Control Method Battery.
4. Disable both items.
5. Restart the device (Windows will automatically re‑enable them).

This forces Windows to re‑register the battery interface.

Step 3: Repair Windows system files (DISM + SFC)

System file corruption can prevent the battery icon from loading even when the battery itself is detected.

1. Open Command Prompt (Run as administrator).
2. Run the following commands one at a time:
   • DISM /Online /Cleanup-Image /RestoreHealth
   • sfc /scannow
3. Restart the device after both commands complete.

Step 4: Install the latest Surface drivers and firmware

Download and install the official Surface Pro Driver and Firmware package from Microsoft’s support website, making sure it matches your exact Surface Pro model. This updates Surface‑specific components (ACPI, battery controller, firmware) that Windows Update may not fully repair.

Step 5: Test with a new Windows user profile

In some cases, the issue is limited to a corrupted Windows profile.

• Go to Settings > Accounts > Other users.
• Click Add account then choose I don't have this person's sign-in information >Add a user without a Microsoft account.
• Enter a username and password and click Next.
• Sign in to the new account and check whether the battery icon appears.

If the icon shows in the new profile, the original user profile is likely corrupted.

Please keep me posted on how it goes, and feel free to reach out if you need any further assistance.

If you have extra questions about this answer, please click "Comment".

Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.

If the battery icon is not appearing in Windows 11, you can try the following steps to troubleshoot the issue:

1. Check Taskbar Settings: Right-click on the taskbar and select "Taskbar settings." Under "Taskbar corner overflow," make sure the battery icon is enabled.
2. Restart Windows Explorer: Sometimes, restarting Windows Explorer can refresh the taskbar. You can do this by opening Task Manager (Ctrl + Shift + Esc), finding "Windows Explorer" in the list, right-clicking it, and selecting "Restart."
3. Update Drivers: Ensure that your battery and chipset drivers are up to date. You can check for updates in Device Manager.
4. Run Power Troubleshooter: Go to Settings > Update & Security > Troubleshoot > Additional troubleshooters, and run the Power troubleshooter.
5. Check for Windows Updates: Make sure your Windows 11 is up to date by going to Settings > Windows Update and checking for updates.
6. Check System Settings: Sometimes, specific settings can hide the battery icon. Go to Settings > System > Notifications & actions and ensure that the battery notifications are enabled.

If none of these steps work, there may be a deeper issue with the operating system or hardware that might require further investigation or support from Microsoft.

References:

• Battery and power subsystem hardware design
• Battery and charging
