Extend Azure Logic Apps Migration Agent to other platforms by creating custom parsers (preview)

Applies to: Azure Logic Apps (Standard)

If your organization uses an integration platform that the Azure Logic Apps Migration Agent extension in Visual Studio Code doesn't currently support, such as TIBCO BusinessWorks, IBM IIB/ACE, Dell Boomi, or Workato, you can extend the agent by creating and adding a custom parser for that platform. The extension uses a registry-based parser architecture that supports both built-in and external parsers, so you can add platform support without modifying the core migration pipeline.

This article shows how to create and add a custom parser that transforms your source integration platform's artifacts into the migration agent's common Intermediate Representation (IR) format. This JSON document describes artifacts in a platform-neutral way and lets the agent process your artifacts through all 5 migration stages.

Prerequisites

Before you start, make sure you have the following resources:

Parser architecture

To add platform support to the migration agent, use the following approaches:

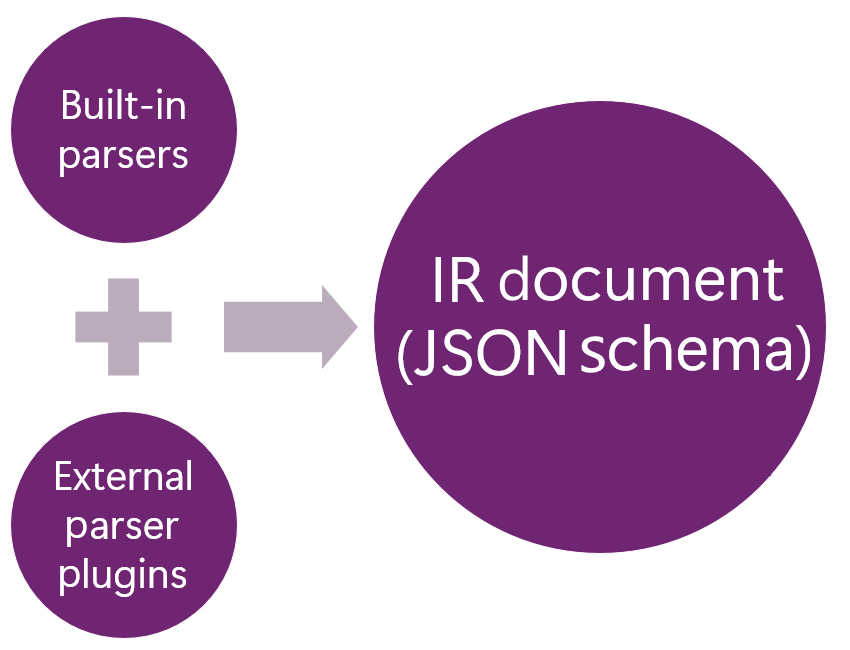

All parsers transform source platform artifacts into a common IR format as a JSON document. The migration agent uses the IR format in the planning, conversion, and validation stages. The parser registry supports both built-in and external parser plugins:

Step 1: Add a built-in parser

1. Under src/parsers/<your-platform>/, create a new parser module.

   src/parsers/
   ├── biztalk/              # Reference implementation
   │   ├── index.ts
   │   ├── types.ts
   │   ├── BizTalkProjectParser.ts
   │   ├── BizTalkOrchestrationParser.ts
   │   └── ...
   ├── <your-platform>/      # Your new parser
   │   ├── index.ts
   │   ├── types.ts
   │   └── <your-platform-parser-name>.ts


2. Make sure each parser implements the IParser interface.

   import { IParser, ParserCapabilities, ParseResult, ParseOptions } from '../types';
   import { IRDocument, createEmptyIRDocument } from '../../ir/types';

   export class YourPlatformParser implements IParser {
       get capabilities(): ParserCapabilities {
           return {
               platform: '<your-platform>',
               fileExtensions: ['.<your-extension>'],
               fileTypes: ['flow'],
               supportsFolder: false,
               description: 'Parses <your-platform> integration flows.',
           };
       }

       canParse(filePath: string): boolean {
           return filePath.endsWith('.<your-extension>');
       }

       async parse(
           filePath: string,
           options?: ParseOptions
       ): Promise<ParseResult> {
           const ir = createEmptyIRDocument();
           // Parse the source file and populate the IR document.
           // For the complete schema, see docs/IRSchema.md.
           return { ir, stats: { /* parsing statistics */ } };
       }
   }


3. Register your parser in src/parsers/index.ts.

   import { <your-platform-parser-name> } from './<your-platform>';

   export function initializeParsers(): void {
       // ... existing parsers ...
       defaultParserRegistry.register(new <your-platform-parser-name>());
   }


   Tip

   As a fully working reference, use the BizTalk parser implementation in src/parsers/biztalk/.

Step 2: Add platform-specific skills

As Markdown files, skills provide AI instructions for each migration stage. They tell the GitHub Copilot agents how to analyze, plan, and convert artifacts for your specific platform.

To find these skills, look under resources/skills/ with platform-specific variants.

resources/skills/
├── detect-logical-groups/
│   ├── biztalk/SKILL.md
│   ├── mulesoft/SKILL.md
│   └── <your-platform>/SKILL.md
├── source-to-logic-apps-mapping/
│   ├── biztalk/SKILL.md
│   ├── mulesoft/SKILL.md
│   └── <your-platform>/SKILL.md
└── ... (13 skills total)

Each SKILL.md file uses YAML frontmatter followed by Markdown content, for example:

---
name: source-to-logic-apps-mapping
description: >-
   Component mapping for \<*your-platform*\> components to their equivalents in Azure Logic Apps (Standard).
---

Step 3: Map your platform to Azure Logic Apps (Standard) components

1. Review the following table to create the adapter mappings:

   <your-platform> component	Azure Logic Apps equivalent	Native?	Notes
   HTTP listener	HTTP trigger	Yes	Built-in
   Database connector	SQL Server connector	Yes	Built-in

2. For each skill in the following table, create the required <your-platform>/SKILL.md skill variant:

   Tip

   Copy the skills for a supported platform, such as biztalk/SKILL.md, as a starting point and adapt the content for your platform.

   GitHub Copilot agent	Skill	Purpose
   @migration-analyser	detect-logical-groups	Rules for grouping artifacts into logical flow groups
   @migration-analyser	analyse-source-design	Rules for analyzing source architecture and generating visualizations
   @migration-analyser	dependency-and-decompilation-analysis	Rules for identifying missing dependencies
   All agents	source-to-logic-apps-mapping	Component-by-component mapping from source to Azure Logic Apps
   @migration-planner	logic-apps-planning-rules	Rules for generating migration plans
   @migration-converter	conversion-task-plan-rules	Rules for creating conversion tasks
   @migration-converter	scaffold-logic-apps-project	Rules for scaffolding the Standard logic app project structure
   @migration-converter	workflow-json-generation-rules	Rules for generating workflow.json files
   @migration-converter	connections-json-generation-rules	Rules for generating the connections.json file
   @migration-converter	dotnet-local-functions-logic-apps	Rules for generating .NET local functions
   @migration-converter	no-stubs-code-generation	Rules for ensuring that generated code is complete
   @migration-converter	runtime-validation-and-testing	Rules for runtime validation and testing
   @migration-converter	cloud-deployment-and-testing	Rules for cloud deployment and testing

Step 4: Register your platform

1. In the src/types/platforms.ts file, add your platform to the supported platforms list.

   export type SourcePlatform = 'biztalk' | 'mulesoft' | '<your-platform>';

   export const SUPPORTED_PLATFORMS: PlatformInfo[] = [
       // ... existing platforms ...
       {
           id: '<your-platform>',
           label: '<your-platform-name>',
           description: '<your-platform> version <version-number>',
           icon: '$(server)',
           filePatterns: ['.<your-extension>', '.<your-config>'],
       },
   ];


2. In the src/stages/discovery/PlatformDetector.ts file, add the detection logic.

3. In the src/stages/discovery/SourceFolderService.ts file, add the file patterns.

Step 5 (optional): Add IR examples

To document how your platform's artifacts map to the IR schema, add a docs/IRExamples_YourPlatform.md file. The following examples exist and serve as templates:

Alternative: External parser extension

External parser extensions cover only the migration agent's Discovery stage where the agent parses your source files. Skills, platform detection, and AI-powered planning and conversion require that you directly contribute to the extension's GitHub repository.

However, if you prefer to not directly contribute to the repository, create a separate Visual Studio Code extension that registers parsers by using the parse plugin API:

import * as vscode from 'vscode';

export async function activate(context: vscode.ExtensionContext) {
    const assistant = vscode.extensions.getExtension('microsoft.logicapps-migration-assistant');

    if (assistant) {
        const api = await assistant.activate();
        api.registerParser(new MyPlatformParser(), {
            priority: 10,
        });
    }
}

Parser plugin API
