Overview of the Terraform AzAPI provider

The AzAPI provider is a thin layer on top of the Azure ARM REST APIs. It enables you to manage any Azure resource type using any API version, enabling you to use the latest functionality within Azure. AzAPI is a first-class provider designed to be used on its own or in tandem with the AzureRM provider.

Benefits of using the AzAPI provider

The AzAPI provider features the following benefits:

• Supports all Azure control plane services:
  • Preview services and features
  • All API versions
• Full Terraform state file fidelity
  • Properties and values are saved to state
• No dependency on Swagger
• Common and consistent Azure authentication
• Built-in preflight validation
• Granular control over infrastructure development
• Microsoft Terraform Visual Studio Code extension

Resources

To allow you to manage all Azure resources and features without requiring updates, the AzAPI provider includes the following generic resources:

For a detailed explanation of how the data plane framework works and how parent_id differs from control plane resources, see Understand the AzAPI data plane framework.

Usage hierarchy

Overall, usage should follow these steps:

1. Start with performing as many operations as possible within azapi_resource.
2. If the resource type doesn't exist within azapi_resource but does fall under one of the types supported by azapi_data_plane_resource, use that instead.
3. If the resource already exists in AzureRM or has a property that can't be accessed within azapi_resource, use azapi_update_resource to access these specific properties. Resources that azapi_resource or azapi_data_plane_resource don't support can't be updated through this resource.
4. If you're trying to perform an action that isn't based on an Azure CRUD-friendly resource, azapi_resource_action is less straightforward than azapi_update_resource but more flexible.

Resource configuration examples

The following code snippet configures an Azure resource directly through the ARM API:

resource "azapi_resource" "publicip" {
  type      = "Microsoft.Network/Customipprefixes@2021-03-01"
  name      = "exfullrange"
  parent_id = azurerm_resource_group.example.id
  location  = "westus2"

  body = {
    properties = {
      cidr          = "10.0.0.0/24"
      signedMessage = "Sample Message for WAN"
    }
  }
}

The following code snippet configures a preview property for an existing resource from AzureRM:

resource "azapi_update_resource" "test" {
  type        = "Microsoft.ContainerRegistry/registries@2020-11-01-preview"
  resource_id = azurerm_container_registry.acr.id

  body = {
    properties = {
      anonymousPullEnabled = var.bool_anonymous_pull
    }
  }
}

The following code snippet configures a resource action on an existing AzureRM resource:

resource "azapi_resource_action" "vm_shutdown" {
  type = "Microsoft.Compute/virtualMachines@2023-07-01"
  resource_id = azurerm_linux_virtual_machine.example.id
  action = "powerOff”
}

The following code snippet configures a resource that doesn't currently exist in the AzureRM provider due to being provisioned on the data plane:

resource "azapi_data_plane_resource" "dataset" {
  type      = "Microsoft.Synapse/workspaces/datasets@2020-12-01"
  parent_id = trimprefix(data.azurerm_synapse_workspace.example.connectivity_endpoints.dev, "https://")
  name      = "example-dataset"
  body = {
    properties = {
      type = "AzureBlob",
      typeProperties = {
        folderPath = {
          value = "@dataset().MyFolderPath"
          type  = "Expression"
        }
        fileName = {
          value = "@dataset().MyFileName"
          type  = "Expression"
        }
        format = {
          type = "TextFormat"
        }
      }
      parameters = {
        MyFolderPath = {
          type = "String"
        }
        MyFileName = {
          type = "String"
        }
      }
    }
  }
}

Preflight usage example

The following code snippet errors during terraform plan due to AzAPI's built-in preflight validation:

provider "azapi" {
  enable_preflight = true
}
resource "azapi_resource" "vnet" {
  type      = "Microsoft.Network/virtualNetworks@2024-01-01"
  parent_id = azapi_resource.resourceGroup.id
  name      = "example-vnet"
  location  = "westus"
  body = {
    properties = {
      addressSpace = {
        addressPrefixes = [
          "10.0.0.0/160", # preflight will throw an error here
        ]
      }
    }
  }
}

When enabled, preflight surfaces configuration errors during terraform plan rather than at apply time.

Data Sources

The AzAPI provider supports various useful data sources:

For a hands-on example using azapi_resource_list with JMESPath filtering, see List Azure resources with the AzAPI Terraform provider.

Read an existing resource with azapi_resource data source

The azapi_resource data source reads the current state of any Azure resource and exposes its properties through the output attribute. Use it when you need a property that the AzureRM provider doesn't expose:

data "azapi_resource" "aks" {
  type      = "Microsoft.ContainerService/managedClusters@2024-02-01"
  resource_id = azurerm_kubernetes_cluster.example.id

  # Extract the OIDC issuer URL, not exposed by azurerm_kubernetes_cluster
  response_export_values = ["properties.oidcIssuerProfile.issuerURL"]
}

output "oidc_issuer_url" {
  value = data.azapi_resource.aks.output.properties.oidcIssuerProfile.issuerURL
}

Use response_export_values and JMESPath

response_export_values controls which properties are extracted from the raw ARM API response and made available in the output attribute. It accepts a list or a map:

• List: Specify JSON property paths to extract. Use ["*"] to export the full response body.
• Map: Use JMESPath expressions to filter and reshape the response. The key is the output field name; the value is the JMESPath query.

The map form is preferred for list responses and cases where you need to transform the output:

data "azapi_resource_list" "storage_accounts" {
  type      = "Microsoft.Storage/storageAccounts@2023-01-01"
  parent_id = azurerm_resource_group.example.id

  response_export_values = {
    "names"     = "value[].name"
    "locations" = "value[].location"
  }
}

For a full walkthrough, see List Azure resources with the AzAPI Terraform provider.

Authentication using the AzAPI provider

The AzAPI provider enables the same authentication methods as the AzureRM provider. For more information on authentication options, see Authenticate Terraform to Azure.

Experience and lifecycle of the AzAPI provider

This section describes some tools to help you use the AzAPI provider.

VS Code extension and Language Server

The Microsoft Terraform VS Code extension provides a rich authoring experience for both the AzureRM and AzAPI providers, including:

• List all available resource types and API versions.
• Autocompletion of the allowed properties and values for any resource.
• Show hints when hovering over a property.

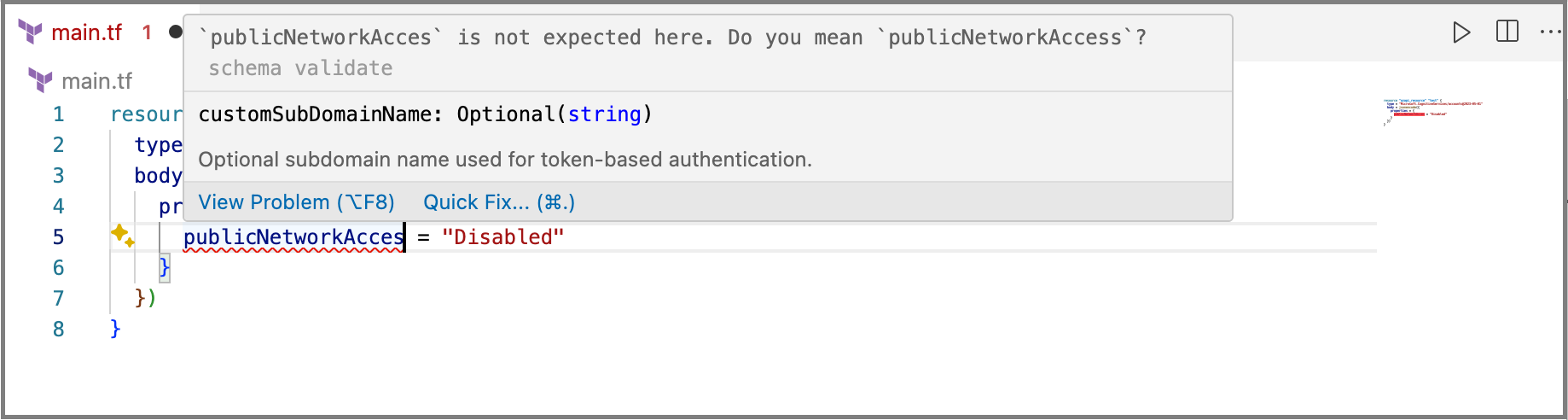

• Syntax validation

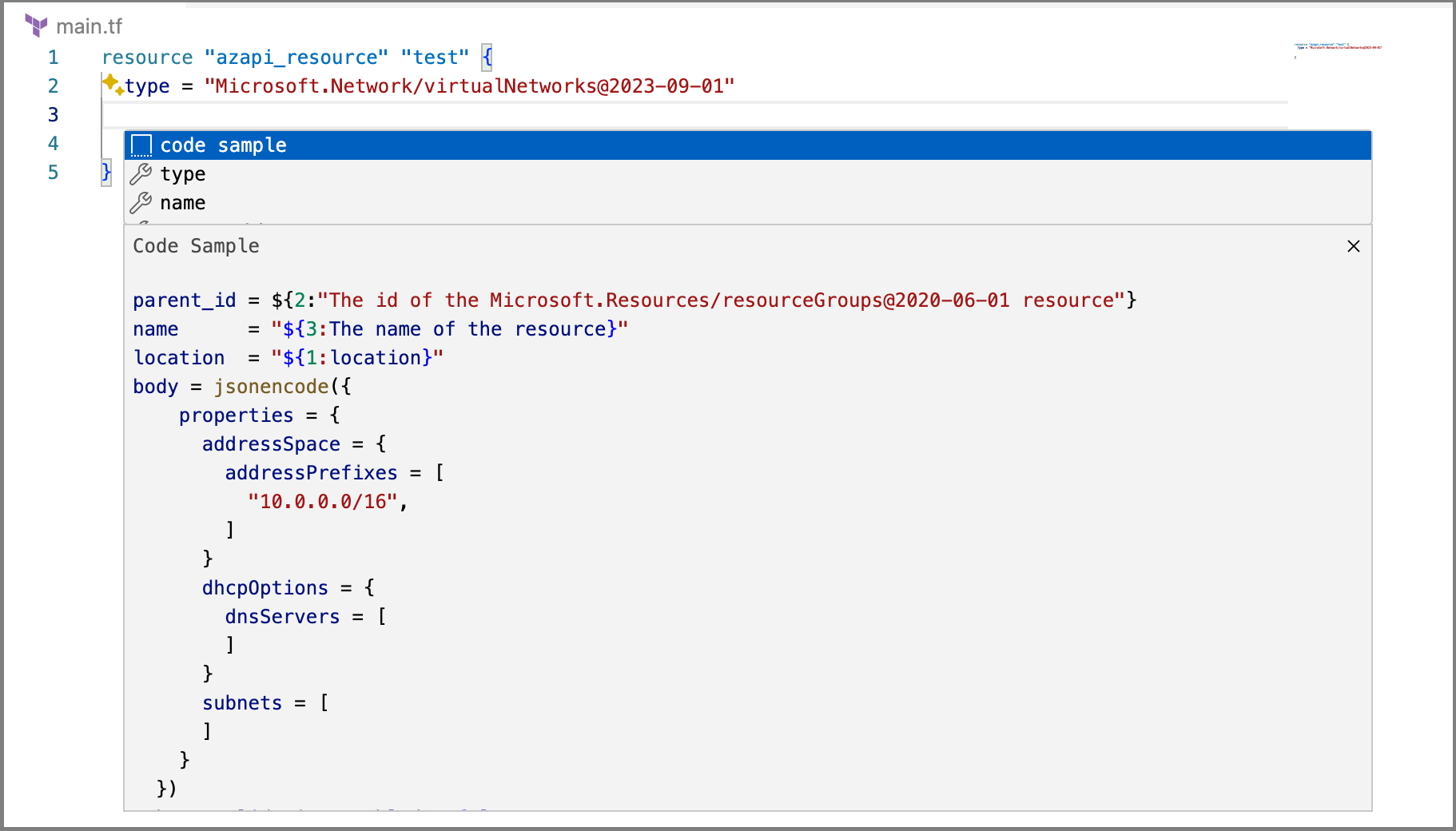

• Autocompletion with code samples.

The extension also supports paste-as-AzAPI (converts ARM JSON to azapi_resource blocks), Azure resource export via aztfexport, AzureRM-to-AzAPI migration, and preflight validation. For a full guide, see Use the Microsoft Terraform VS Code extension.

aztfmigrate migration tool

The aztfmigrate tool is designed to help migrate existing resources between the AzAPI and AzureRM providers.

aztfmigrate has two modes: plan and migrate:

• Plan displays the AzAPI resources that can be migrated.
• Migrate migrates the AzAPI resources to AzureRM resources in both the HCL files and the state.

aztfmigrate ensures after migration that your Terraform configuration and state are aligned with your actual state. You can validate the update to state by running terraform plan after completing the migration to confirm no changes occurred.

For a step-by-step walkthrough, see Migrate resources from AzAPI to AzureRM.

Import existing Azure resources

To bring an existing Azure resource under AzAPI management without re-creating it, use the import block (Terraform 1.5 and later) or the terraform import command. The resource ID must include the API version as a query parameter:

import {
  to = azapi_resource.example
  id = "/subscriptions/00000000-0000-0000-0000-000000000000/resourceGroups/example-rg/providers/Microsoft.Network/virtualNetworks/example-vnet?api-version=2023-11-01"
}

resource "azapi_resource" "example" {
  type      = "Microsoft.Network/virtualNetworks@2023-11-01"
  name      = "example-vnet"
  parent_id = "/subscriptions/00000000-0000-0000-0000-000000000000/resourceGroups/example-rg"
  location  = "westus"
  body = {
    properties = {
      addressSpace = {
        addressPrefixes = ["10.0.0.0/16"]
      }
    }
  }
}

To import multiple resources at once from existing Azure infrastructure, use Azure Export for Terraform (aztfexport), which generates both the HCL configuration and the import blocks automatically.

Granular controls over infrastructure

One major benefit of AzAPI is through its ability to fine-tune your configuration to match the right design patterns. There are several ways to do this:

Provider configuration options

The AzAPI provider block accepts several settings that apply globally across all resources in the configuration:

For a full list of provider configuration options, see the AzAPI provider schema.

For a walkthrough of enabling preflight, see Enable preflight validation in the AzAPI Terraform provider.

Provider functions

AzAPI v2.0 and later includes several provider functions:

User-defined retryable errors with the retry block

The AzAPI provider handles expected errors through the retry block. For example, use the following configuration to retry when a resource encounters a create timeout:

resource "azapi_resource" "example" {
    # usual properties
    retry {
        interval_seconds     = 5
        randomization_factor = 0.5 # adds randomization to retry pattern
        multiplier           = 2 # if try fails, multiplies time between next try by this much
        error_message_regex  = ["ResourceNotFound"]
    }
    timeouts {
        create = "10m"
}

The retry block accepts these attributes:

Combine retry with the timeouts block to set an upper bound on total retry duration:

timeouts {
  create = "10m"
}

Ephemeral resources and write-only properties

AzAPI v2.x supports write-only arguments (Terraform 1.11 and later) through the sensitive_body attribute on azapi_resource. Write-only properties are sent to the ARM API but aren't stored in Terraform state, which is useful for secrets and credentials:

resource "azapi_resource" "example" {
  type      = "Microsoft.SomeService/resources@2024-01-01"
  name      = "example"
  parent_id = azurerm_resource_group.example.id

  body = {
    properties = {
      name = "example"
    }
  }

  # Write-only — not stored in state
  sensitive_body = {
    properties = {
      adminPassword = var.admin_password
    }
  }
}

Use sensitive_body_version to control when write-only properties are resent to the API (for example, when rotating credentials).

Triggers for resource replacement

The AzAPI provider allows you to configure parameters for resource replacement:

replace_triggers_external_values

Replaces the resource if a value changes. For example, if the SKU or zones variables were to be modified, this resource would be re-created:

resource "azapi_resource" "example" {
  name      = var.name
  type      = "Microsoft.Network/publicIPAddresses@2023-11-01"
  parent_id = "/subscriptions/00000000-0000-0000-0000-000000000000/resourceGroups/example"
  body      = properties = {
    sku   = var.sku
    zones = var.zones
  }
  replace_triggers_external_values = [
    var.sku,
    var.zones,
  ]
}

This trigger works across a broad set of resources—for example, a policy assignment when properties of the definition change.

replace_triggers_refs

Replaces the resource if the referenced value changes. For example, if the SKU name or tier was modified, this resource would be re-created:

resource "azapi_resource" "example" {
  type      = "Microsoft.Relay/namespaces@2021-11-01"
  parent_id = azurerm_resource_group.example.id
  name      = "xxx"
  location  = "westus"
  body = {
    properties = {
    }
    sku = {
      name = "Standard"
      tier = "Standard"
    }
  }

  replace_triggers_refs = ["sku"]
}

This wouldn't trigger a replace if a different resource's SKU changes.
